Pagoda Parts

The Mercedes 280SL (or Pagoda) is a classic vehicle, known for its elegance, performance, and engineering excellence. However, like all vintage cars, it requires proper maintenance to ensure it runs smoothly. Installing Pagoda parts can be easy or difficult depending on what part is being replaced. One of the critical components in its ignition system is the ballast resistor, which plays a crucial role in regulating the voltage to the ignition coil, ensuring the vehicle starts reliably and runs efficiently. In this article, we will guide you through the step-by-step process of installing a ballast resistor (0227901013) in a Mercedes 280SL. Whether you’re a seasoned mechanic or a classic car enthusiast tackling this project for the first time, this guide will provide you with the necessary information to get the job done right.

Understanding Pagoda Parts (the Ballast Resistor)

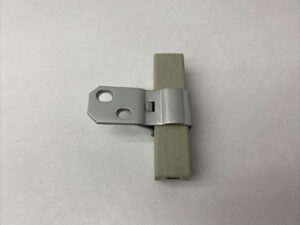

Before diving into the installation process, it’s essential to understand what a ballast resistor does and why it’s necessary for your Mercedes 280SL. The ballast resistor (0227901013) is an electrical component that limits the amount of current reaching the ignition coil. During startup, the ballast resistor allows full battery voltage to reach the coil, providing a strong spark for ignition. Once the engine is running, the resistor reduces the voltage to the coil, preventing it from overheating and extending its lifespan. Without a properly functioning ballast resistor, your vehicle could experience starting issues, misfires, and other ignition-related problems.

Tools and Materials

• A new ballast resistor compatible with the Mercedes 280SL
• Screwdrivers (flathead and Phillips)
• Wire cutters/strippers
• Electrical tape or heat shrink tubing
• Crimping tool
• Multimeter (optional but recommended)
• Wrenches and socket set (this is a tool that is needed for all Pagoda parts)
• Protective gloves and safety glasses

Step 1: Safety First

Before you start working on your vehicle, it’s essential to take safety precautions. Disconnect the battery to avoid any accidental short circuits or electric shocks. Make sure the car is parked on a flat surface and the handbrake is engaged. Wear safety glasses and gloves to protect yourself from any potential injuries.

Step 2: Locate the Ballast Resistor

In the Mercedes 280SL, the ballast resistor (0227901013) is typically mounted on the firewall or near the ignition coil. To find it, open the hood and locate the ignition coil, which is a cylindrical component usually mounted near the front of the engine bay. The ballast resistor is connected to the coil by a set of wires. If you have trouble locating Pagoda parts, in this case the ballast resister, you can always refer to the vehicle’s service manual for the exact location.

Step 3: Remove the Old Ballast Resistor

Once you’ve located the ballast resistor (0227901013), it’s time to remove the old one. Begin by disconnecting the wires connected to the resistor. There should be two or three wires attached to it, depending on the specific configuration of your vehicle. Use a flathead screwdriver to loosen the screws holding the wires in place, and carefully pull the wires off the terminals. Be sure to note the orientation and placement of each wire, as you’ll need to reconnect them in the same way later. Next, use a wrench or socket set to remove the screws or bolts securing the resistor to the vehicle. Once the screws are removed, you can lift the old resistor out of its mounting position.

Step 4: Install the New Ballast Resistor

Now that the old ballast resistor (0227901013) is removed, it’s time to install the new one. Begin by placing the new resistor in the same position as the old one, aligning the mounting holes with the holes in the vehicle’s firewall or mounting bracket. Secure the resistor in place using the screws or bolts you removed earlier. Make sure the resistor is firmly mounted and doesn’t move or rattle. All Pagoda parts that are being replaced should be secured in this manner.

Step 5: Reconnect the Wires

With the new resistor securely in place, it’s time to reconnect the wires. Refer to the notes you took earlier or the service manual to ensure the wires are connected correctly. If the wires’ ends are frayed or damaged, use wire cutters to trim the ends, then strip about ¼ inch of insulation from each wire. If necessary, crimp new connectors onto the wire ends using a crimping tool. Attach each wire to the corresponding terminal on the ballast resistor, ensuring a secure connection. Tighten the screws on the terminals to hold the wires in place. Use electrical tape or heat shrink tubing to insulate any exposed wire ends or connectors, reducing the risk of short circuits.

Step 6: Double-Check Your Work

Before reconnecting the battery and starting the car, take a moment to double-check your work. Ensure all wires are connected correctly, the resistor is securely mounted, and there are no loose or exposed connections. If you have a multimeter, you can use it to check the resistance of the new ballast resistor (0227901013) to ensure it’s within the correct range specified in the service manual. This step is optional but recommended, especially if you’re troubleshooting ignition issues.

Step 7: Reconnect the Battery and Test

Once you’re confident everything is installed correctly, reconnect the battery. Start the car and observe how it runs. If the installation was successful, the car should start smoothly, and the engine should run without any misfires or hesitation; this step should be taken for all Pagoda parts that are being replaced. If you notice any issues, such as difficulty starting or engine misfires, double-check your connections and ensure the ballast resistor (0227901013) is functioning correctly. In some cases, a faulty ignition coil or other ignition components could be the root cause of the problem, so further diagnosis may be necessary.

Step 8: Final Inspection and Maintenance Tips

After successfully installing the ballast resistor (0227901013) and confirming that the car runs smoothly, take a few minutes to inspect the rest of the ignition system. Check the condition of the ignition coil, spark plugs, and wiring for any signs of wear or damage. Regular maintenance of these components is essential to keep your Mercedes 280SL running reliably. It’s also a good idea to keep a spare ballast resistor (0227901013) on hand, especially if you frequently drive your classic car. Ballast resistors can wear out over time, and having a spare can save you from being stranded with ignition problems.

Conclusion

Installing Pagoda parts, like a ballast resistor (0227901013), is a straightforward task that can be completed with basic tools and a bit of mechanical knowledge. By following the steps outlined in this guide, you can ensure that your vehicle’s ignition system operates efficiently, providing reliable starts and smooth engine performance. Remember, the key to maintaining a classic car like the Mercedes 280SL is regular maintenance and attention to detail. By taking care of components like the ballast resistor, you’ll enjoy many more miles of driving pleasure in your timeless vehicle.
