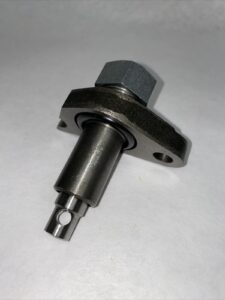

The Mercedes-Benz 280 SL (W113), popularly known as the “Pagoda” due to its distinctive concave hardtop, is a classic luxury car from the 1960s and early 1970s. One of the key Pagoda parts is the Chain Tensioner (205130). This part ensures that the timing chain in the engine stays taut, keeping the valves and pistons in sync for optimal performance. A failing chain tensioner can lead to serious engine problems, including loss of timing, misfires, and potential engine damage. If you’re experiencing rattling noises, poor engine performance, or a timing chain that appears loose, it may be time to replace or install a new Chain Tensioner (205130). This article will guide you through the process of installing a chain tensioner on a Mercedes 280 SL.

Tools and Materials

• New chain tensioner (specific to the Mercedes 280 SL – part 205130)
• Wrenches (various sizes, including torque wrench)
• Screwdrivers (flathead and Phillips)
• Ratchet and socket set
• Pliers
• Clean rags or towels
• Engine oil
• Drain pan
• Gasket sealant (optional)
• Protective gloves and eyewear
• Service manual for Mercedes 280 SL (for reference to change all Pagoda parts)

Step-by-Step Guide to Installing a Chain Tensioner (Pagoda Parts)

Before starting the installation process, it’s crucial to gather all the necessary tools and equipment. This step should be taken when installing or replacing any Pagoda parts. Make sure you have the correct Chain Tensioner (205130) specific to your Mercedes 280 SL model. This part can vary slightly depending on the engine type, so double-check that you have the right one.

1. Park the car on a level surface: Ensure the vehicle is on a flat and stable surface. This will prevent any rolling or shifting while you work on the engine.
2. Disconnect the battery: Before doing any work on the engine, disconnect the negative terminal of the car battery to prevent any electrical accidents or short circuits.
3. Drain the oil (if necessary): Depending on the design of the engine and tensioner placement, you may need to drain the engine oil to access the tensioner. Place a drain pan under the car, remove the oil drain plug, and allow the oil to drain out completely.
4. Remove Engine Components for Access: To access the chain tensioner, you’ll need to remove a few parts from the engine bay. This typically involves the removal of: Fan shroud or cooling fan, (if obstructing access) , Drive belts (loosen tension and remove the belts that may block the timing cover), Valve cover (the timing chain and tensioner are located beneath it) Carefully remove these parts using your ratchet and socket set. Keep all bolts and components organized as you’ll need to reinstall them later. You should be sure to do this when removing any Pagoda parts for replacement as loosing components can be time consuming and costly.
5. Locate the Timing Chain and Chain Tensioner (205130): Once the valve cover is removed, you’ll be able to see the timing chain. The chain tensioner is typically located on the side of the timing chain and is responsible for applying tension to keep the chain taut.
6. Inspect the timing chain: Check the condition of the timing chain itself. If the chain is severely worn or loose, you may also need to replace the chain along with the tensioner.
7. Inspect the guides: Timing chain guides help the chain stay on its path. Look for any cracks, wear, or damage to the guides as these may also need to be replaced.
8. Remove the bolts securing the tensioner: Use a ratchet and socket to remove the bolts that hold the chain tensioner in place. Typically, there will be 2 to 3 bolts securing it to the engine block.
9. Carefully remove the Chain Tensioner (205130): Once the bolts are removed, gently pull the tensioner away from the engine. You may need to wiggle it slightly to break any seal created by gasket material or old oil buildup.
10. Check for gasket material: Some chain tensioners may have a gasket between them and the engine block. If this is the case, ensure that you remove any remnants of the old gasket using a scraper or clean rag.
11. Install the New Chain Tensioner: With the old tensioner removed, you can now proceed with the installation of the new part. As with all Pagoda parts, if you are unsure about something, be sure to consult the owner’s manual.
12. Prepare the new tensioner: Before installing the new chain tensioner, it’s a good idea to lubricate it with some fresh engine oil. This will help prevent any initial dry friction when the engine is started.
13. Position the tensioner: Place the new tensioner in the same spot where the old one was located. Ensure that the tensioner is aligned properly with the timing chain.
14. Insert the bolts: Start threading the bolts by hand to avoid cross-threading. Once all the bolts are hand-tightened, use a torque wrench to tighten them to the manufacturer’s recommended torque specification. Over-tightening can damage the tensioner or the engine block.
15. Check tension: After installing the Chain Tensioner (205130), check the tension on the timing chain. The chain should be taut, but not overly tight. If the chain still feels loose, there may be an issue with the chain itself or the guides.
16. Reinstall the valve cover: Clean the surface of the valve cover and the engine block to ensure a proper seal. If necessary, apply gasket sealant before placing the cover back on. Tighten the valve cover bolts to the correct torque specification.
17. Reinstall drive belts: Put the drive belts back in place and adjust the tension accordingly.
18. Reinstall the fan or shroud: If you had to remove the cooling fan or shroud, reattach these components and make sure they are secure.
19. Refill the Engine Oil (if necessary): If you had to drain the engine oil earlier, now is the time to refill it. Replace the oil drain plug, and add the correct type and amount of oil recommended for the Mercedes 280 SL. The owner’s manual will include all Pagoda parts and their location as well as the recommended oil for each model of the Pagoda.
20. Final Checks: Before starting the engine, double-check all connections, bolts, and components. Make sure nothing is loose or improperly installed. If any other Pagoda parts were damaged in the process, it is important to know about it right away.
21. Reconnect the battery and start the engine. Listen for noises: Pay attention to any abnormal noises, such as rattling or grinding. These could indicate a problem with the installation.
22. Check for oil leaks:  After the engine runs for a few minutes, inspect the area around the valve cover and chain tensioner for any signs of oil leakage.

Conclusion

Installing Pagoda parts, like a Chain Tensioner (205130), is a critical maintenance task that requires attention to detail. By following these steps carefully, you can ensure that your engine runs smoothly and efficiently. Regular inspection and replacement of the timing components will keep your classic Mercedes in optimal condition for years to come.
